Mobile Link (S) user guide

Your mobile medical alert system.

How to charge Mobile Link

IMPORTANT: Fully charge Mobile Link before first use.

Plug in the charging cradle and place Mobile Link into the cradle.

Typical charging time is 2-3 hours. The red battery light flashes every 5 seconds while charging and is solid when Mobile Link is fully charged.

It is normal for the light around the call button on Mobile Link to be off when the device is not in the charging cradle.

You can check the battery level at any time by pressing the battery level indicator button on the side of the device. The device will either say "Battery OK" or "Battery low, please charge."

NOTE: The rechargeable battery in Mobile Link lasts up to 45 days per charge. Only charge as needed. Wear your device as often as possible to be protected.

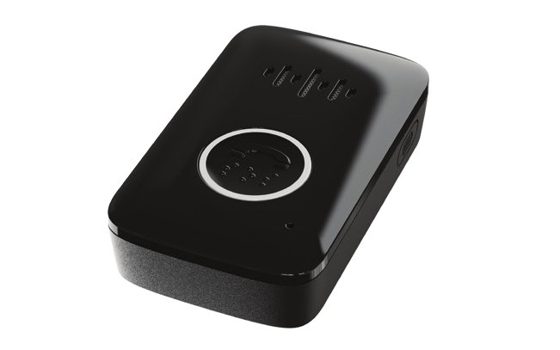

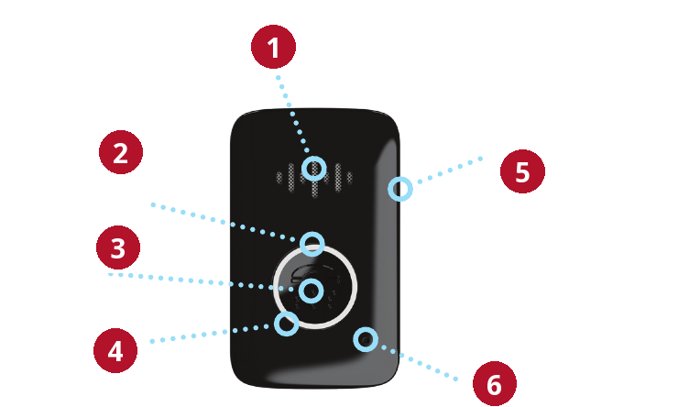

Meet your Mobile Link

Speaker
Red light at top of call button
Call button
Blue light around call button
Battery level indicator button, on the side
Microphone

Red battery light at top of call button

While charging, the red battery light will flash every 5 seconds until the device is fully charged. Once fully charged, the red battery light will be solid.
If the battery is low, the red battery light will slowly flash for 3 minutes after daily check-in, SOS call or uncradling.

Blue call light around call button

During an SOS call, the blue call light will be solid.
The blue call light will flash every 5 seconds while charging and for a short time after a call ends. The blue call light also flashes every 5 seconds for 3 minutes during the daily check-in to the network.

How to call for help

Press and hold the call button and count 1, 2, 3, or until the light around the call button on Mobile Link turns blue, then release the button.
After a short delay, you will hear a voice message and then tones or ringing.
The specialist will answer the call.
The specialist can send emergency personnel or loved ones to help you.

If your Mobile Link does not connect properly, please call us immediately.

Testing Mobile Link weekly

We recommend that you test Mobile Link weekly.

Press and hold the call button and count 1, 2, 3, or until the light around the call button on Mobile Link turns blue, then release the button.
After a short delay, you will hear a voice message and then tones or ringing.
The specialist will answer the call.
Tell the specialist you are testing.

If your Mobile Link does not test properly, please call us immediately.

Replace lanyard with belt clip

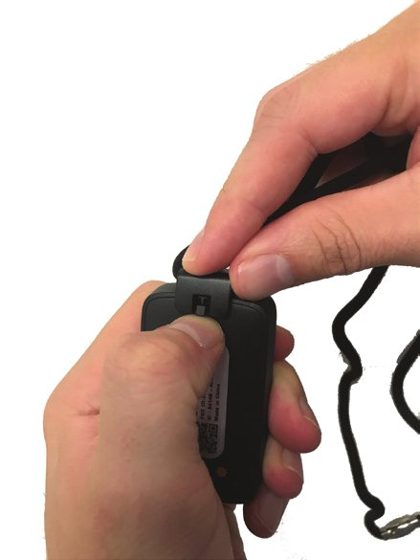

Remove the lanyard by pressing the small tab upward to release the clip.

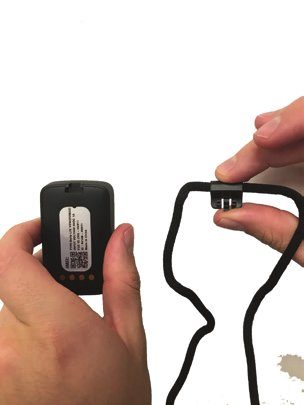

Pull the lanyard and clip away from the Mobile Link.

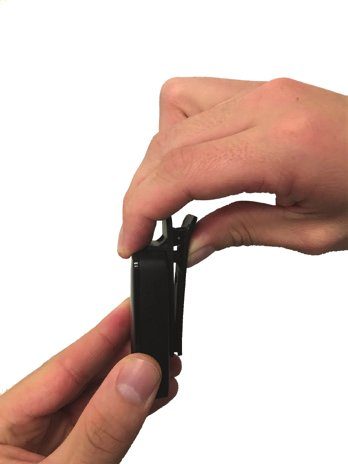

Press the clip on the back of the belt clip into the slot on the back of Mobile Link until it clicks.

Note: You can charge Mobile Link in its cradle with the belt clip attached.

Cleaning Mobile Link weekly

We recommend that you clean Mobile Link weekly to ensure proper charging.

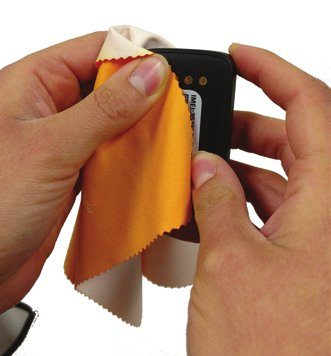

Take a soft cloth, such as an eyeglass cleaning cloth, and gently rub the gold contacts on the device and charging cradle to remove dirt, oil and debris.

You can also spray household cleaner onto the cleaning cloth (though do not spray directly onto the device or cradle) to remove debris.

By using this device, you acknowledge and accept the following information

Coverage

This product requires adequate cellular coverage to work properly. It is important to test the device to know if it works in your area. Remember that your environmental and topographical conditions may also affect your coverage. If you experience coverage issues, please call us immediately.

Charging

Your device’s rechargeable battery may last up to 45 days per charge. Wear your device at all times and only charge when necessary. Failure to follow charging procedures will result in the device not being able to function properly.

Water-resistant

Mobile Link is IP67 water-resistant. Mobile Link should not be submerged. Mobile Link should be towel-dried after exposure to water.

Pacemakers

Individuals with pacemakers should consult their physician and review their pacemaker materials regarding interaction with cell phones, and take the same precautions the materials recommend for this device.

Questions? Call Vital Link: (510) 338-3462

Any day, about anything: charging, a test that did not go through, a strap or clip, or a light you do not recognize.

Location-based services and regulatory information

Location-Based Services: Some of the Equipment uses technology to permit third-parties, including the Monitoring Center, to determine where you are physically located at any given time (the "Location Based Services"). Location Based Services may work even if you are not in communication with the Monitoring Center. The accuracy of the Location Based Services is limited, and the Company, the Operators, the Monitoring Center, the Responders, or others may not be able to identify your location or the location of the Equipment precisely or at all. You authorize the Company to collect location-based information. We will only share your location-based information with the Operators, the Monitoring Center, the Responders, any person or entity that acquires the Company and/or the Company’s interest in and to the Monitoring Services, or any other person or entity you specifically designate and only for the purpose of providing and improving the Monitoring Services.

ANY AND ALL LOCATION-BASED INFORMATION IS MADE AVAILABLE FOR INFORMATIONAL AND PLANNING PURPOSES ONLY AND IS NOT INTENDED TO BE RELIED UPON IN SITUATIONS WHERE PRECISE LOCATION INFORMATION IS NEEDED OR WHERE ERRONEOUS, INACCURATE, TIME-DELAYED OR INCOMPLETE LOCATION OR MAP DATA MAY LEAD TO DEATH, PERSONAL INJURY, OR PROPERTY OR ENVIRONMENTAL DAMAGE. YOU AGREE THAT LOCATION-BASED INFORMATION MAY VARY FROM ACTUAL LOCATION(S), ROAD, OR TERRAIN CONDITIONS DUE TO FACTORS THAT CAN AFFECT THE ACCURACY OF THE MAP DATA, SUCH AS, BUT NOT LIMITED TO, WEATHER, ROAD, AND TRAFFIC CONDITIONS, GEOPOLITICAL EVENTS, AND CONDITION OR STATUS OF YOUR CELLULAR PHONE OR CELLULAR SERVICES. WE DO NOT GUARANTEE ACCURACY OR COMPLETENESS OF ANY LOCATION-BASED INFORMATION.

FCC: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

IC: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device.

Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d’Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne doit pas causer d’interférences. 2. Cet appareil doit accepter toutes les interférences, y compris celles susceptibles de provoquer un fonctionnement indésirable.

CAN ICES-3(B)/NMB-3(B)

Manufacturer: Freeus, LLC, www.freeus.com
